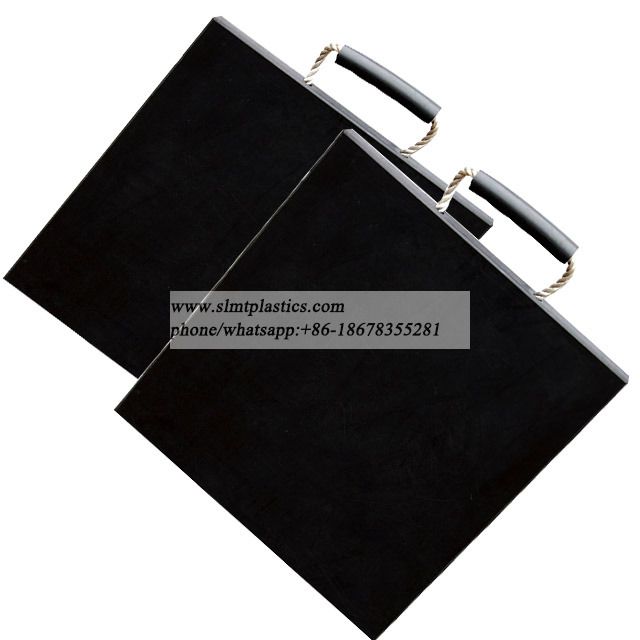

Outrigger Pads Cribbing Pads Crane Plate


Standard size of Crane Outrigger Pad:

Size ( square ) Weight ( kg ) Weight Load ( kg/pad )
400 x 400 x 40 mm
6.3 12,000
500 x 500 x 40 mm
9.9 15000
600 x 600 x 40 mm
14.2 20000
600 x 600 x 50 mm
18.0 25000
600 x 600 x 60 mm
21.2 30000
800 x 800 x 40 mm 25.3 35000
800 x 800 x 50 mm
31.3 40000
800 x 800 x 60 mm
38.4 45000
1000 x 1000 x 50 mm
48.0 50000
1000 x 1000 x 60 mm
58.0 70000
1200 x 1200 x 60 mm
85.0 110000
1200 x 1200 x 80 mm
115.0 120000
1200 x 1200 x 100 mm
141.0 160000
1500 x 1500 x 100 mm
210.0 200000
2000 x 1000 x 100 mm
196.0 220000
3000 x 1000 x 100 mm
588.0 300000
Size ( round ) Weight ( kg ) Weight Load ( kg/pad)
800*50 mm
25.0 35000
800 x 60 mm
30.0 40000
900 x 50 mm
30.0 45000
900 x 60 mm
35.0 50000
1000 x 60 mm
40.0 60000
1000 x 80 mm
61.5 80000
1200 x 60 mm
66.4 90000
1200 x 80 mm
88.5 120000
1500 x 100 mm
180.0 180000

HOW DO THEY WORK?

Stable support is achieved by spreading the load from the stabiliser or outrigger foot over the large and tough surface of an outrigger pad or crane mat. The overall pressure on the ground is reduced by applying the load over a wider surface area, and effectively supporting the machinery or vehicle. Our range of outrigger pads are durable yet lightweight, making them safe and easy to handle.

Outrigger pads offer a wide variety of products covering most applications, with vertical load bearing capacities from 5 to 350 tonnes and prices to suit all budgets.


WHY ARE OUTRIGGER PADS NEEDED?

They provide effective support to machinery and vehicles that use stabilisers or outrigger feet on terrain where load bearing and spreading capacity is an issue, such as soft ground and sensitive flooring or terrain.

Without their use, outriggers and stabilisers can potentially puncture the ground or damage paved surfaces, causing a serious accident if the equipment topples over and considerable cost to recover.

mobile UHMWPE HDPE outrigger pads for craneUHMWPE Construction Machinery Leg Support Pads Hdpe Outdoor Ground PlateHeavy Duty Anti Skid Protector Bash Plastic Plate Uhmwpe Outrigger Slip Pad for Crane
