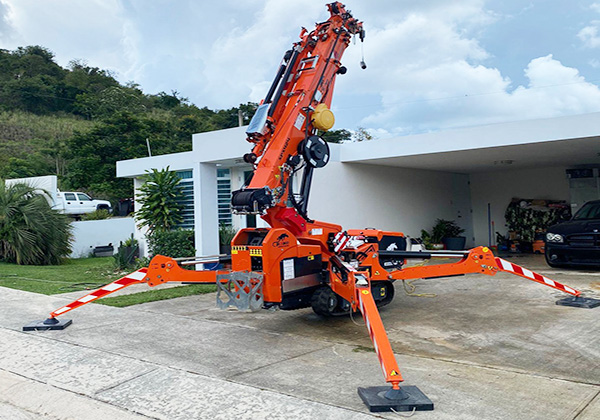

High Density Outrigger Pad: This 1" outrigger pad protects concrete and other surfaces from the impact of heavy equipment; Ideal for utility trucks, small aerial li fts, tree trimmers, and runway equipment
The outrigger pad can effectively disperse the construction machinery's own weight and lifting weight to the area of the outrigger pad to ensure the ground working environment of the construction machinery. When the working environment of construction machinery on the ground is uncertain or not, the use of our outrigger pads can effectively avoid the occurrence of severe accidents.
Features: 1: High wear resistance 2: Small friction resistance. 3; Self-lubricating. (No need for any lubricating oil) 4: Has impact resistance. 5: Operating temperature range -200~ 80 ℃. 7: Not easy to be affected by moisture in humid environment. 8: Has high chemical resistance. 9: Corrosion resistance.
| Length | 18 Inch | 18 Inch | 24 Inch | 24 Inch | 30 Inch | 30 Inch |
|---|---|---|---|---|---|---|
| Width | 18 Inch | 18 Inch | 24 Inch | 24 Inch | 30 Inch | 30 Inch |
| Thickness | 1.5 Inch | 1.5 Inch | 1.5 Inch | 1.5 Inch | 2 Inch | 2 Inch |
| Vertical Load | 55,000 Lbs | 55,000 Lbs | 60,000 Lbs | 60,000 Lbs | 65,000 lbs | 65,000 lbs |
| Crushing Rating | 200 PSI | 200 PSI | 200 PSI | 200 PSI | 200 PSI | 200 PSI |
| Weight | 17 lbs | 17 lbs | 30 lbs | 30 lbs | 63 lbs | 63 lbs |
| Waterproof and Chemicals Resistant | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Material | High Density Polyethylene | High Density Polyethylene | High Density Polyethylene | High Density Polyethylene | High Density Polyethylene | High Density Polyethylene |
| Color | Black | Black | Black | Black | Black | Black |
