| 1.Mechanical Properties | |||
| Item | Unit | Method | Index |
| Density | g/cm3 | ASTM1505 | 0.94 |
| Tensile Strength | MPa | D638 | 42 |
| Tensile Strain at Break | % | D638 | 350 |
| Charpy Impact Strength (Notched) | Kj/m2 | D256 | ≥100 |
| 2.Thermal Properties | |||
| Item | Unit | Method | Index |
| Melting Point | ℃ | ASTMD2117 | 136 |
| Vicat Softening Temperature | ℃ | ASTMD1512 | 134 |
| Coefficient of Liner Thermal Expansion | 10-4/℃ | ASTMD648 | 1.5 |
| Temperature of Deflection | ℃ | ASTMD648 | 90 |
| 3.Electrical Properties | |||
| Item | Unit | Method | Index |
| Volume Resistivity | Ω.cm | ASTMD257 | 1017 |
| Surface Resistivity | Ω | ASTMD257 | 1013 |
| Dielectric Strength | kV/mm | ASTMD149 | 900 |
| Dielectric Coefficient | 106Hz | ASTMD150 | 2.3 |

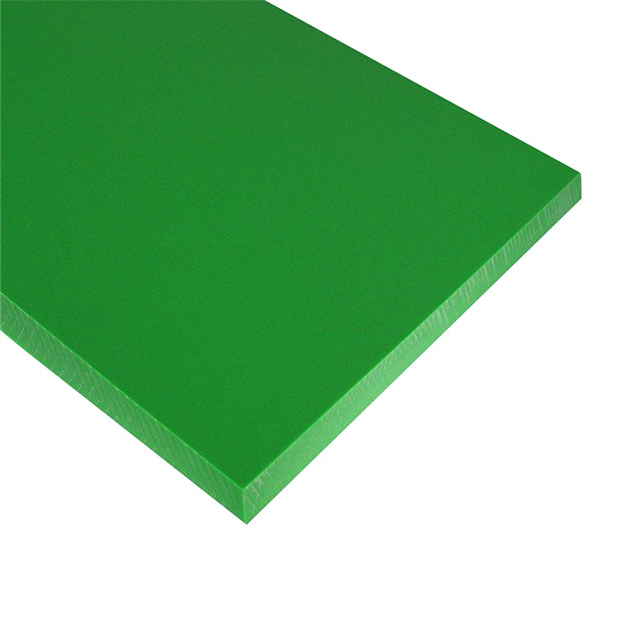

UHMWPE SHEET Main features:
*Excellent wear resistance
*Self-lubricating
*Excellent wear resistance
*Resistance to blunt impact
*Corrosion resistance and chemical resistance
*Low temperature resistance
*Sanitary and non-toxic
